Downpipe Branch – Full Range

Downpipe Branch – Full Range

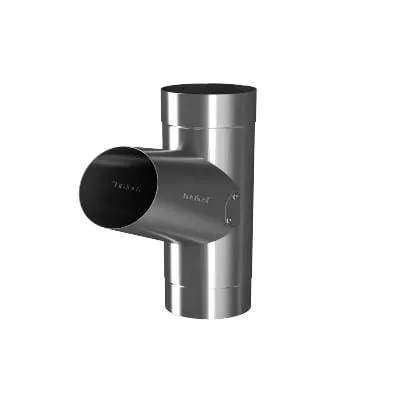

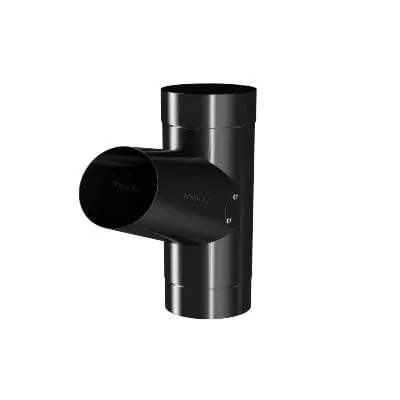

Downpipe Branch joins two water drainage pipes. Plain end on the top opening and male spigot end on the bottom to join to other lengths of pipe. The bottom end of the branch is male ended (spigoted) so fits directly into a plain end of pipe.

Key Features

• Stylish branded design
• Easy push fit connection
• Hard wearing painted finish (Swedish SSAB Colourcoat Steel Coil)
• 5 year manufacturer’s warranty
• Fully recyclable product

Dimensions for 87mm (see drawing):

• Dim A – 89mm
• Dim B – 86mm
• Dim C – 290mm
• Dim D – 180mm
• Dim E – 40mm
• Dim F – 60 degree

Dimensions for 100mm (see drawing):

• Dim A – 100mm
• Dim B – 98mm
• Dim C – 310mm
• Dim D – 190mm
• Dim E – 40mm
• Dim F – 60 degree
